M.A.FORD

M.A. Ford Manufacturing

A leader in the cutting tool industry since 1919, from America’s first HSS rotary file to the development of high-performance cutting tool geometries designed for specific applications in materials such as aircraft components, titanium, high-temp alloys and aluminum, MA Ford is committed to excellence in innovation, quality and professional service.

MAFORD Products

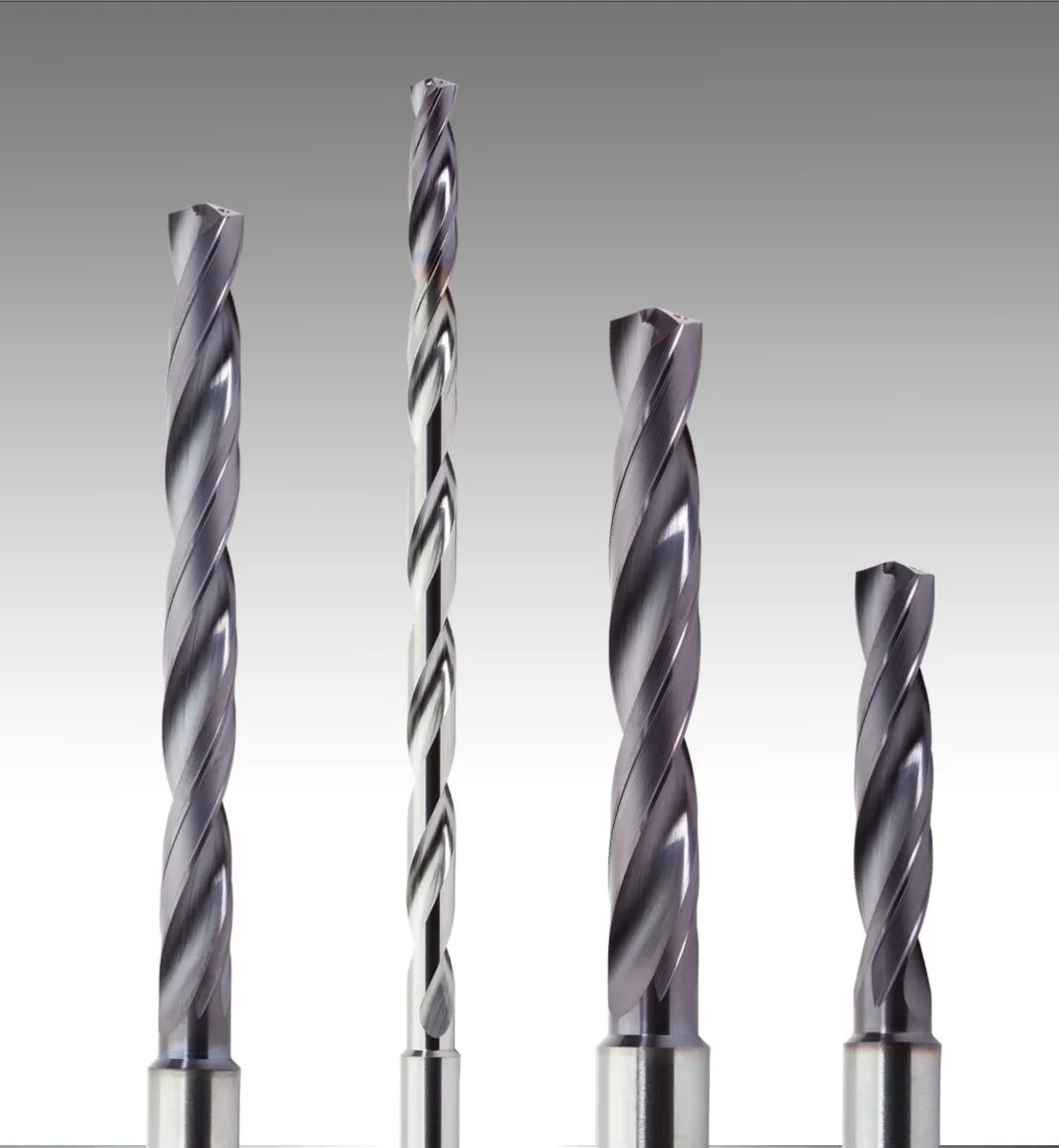

Cyclone

Cyclone Series of High Performance Drills

Cyclone Series of High Performance Drills​

With the Double Margin design, drilling into the hole is faster, the hole surface is better and the position is better when drilling cross-section holes. The Surface Finish technology is developed before coating to improve the adhesion. The Surface Finish technology is developed after coating to increase chip evacuation. And Edge Honing is done to protect the cutting edge area.

  • 2 Flute
  • 5X  Regular length
  • Solid carbide
  • Double margin
  • 140°-142° Point
  • 30° Helix
  • Metric sizes above 5mm manufactured to DIN 6537L
  • ALtima® Plus coated, AP=ALtima® Plus coated
  • ALtima® Plus is a multi-layer AlTiN coating that provides higher heat resistance, longer tool life and reduces chipping and wear

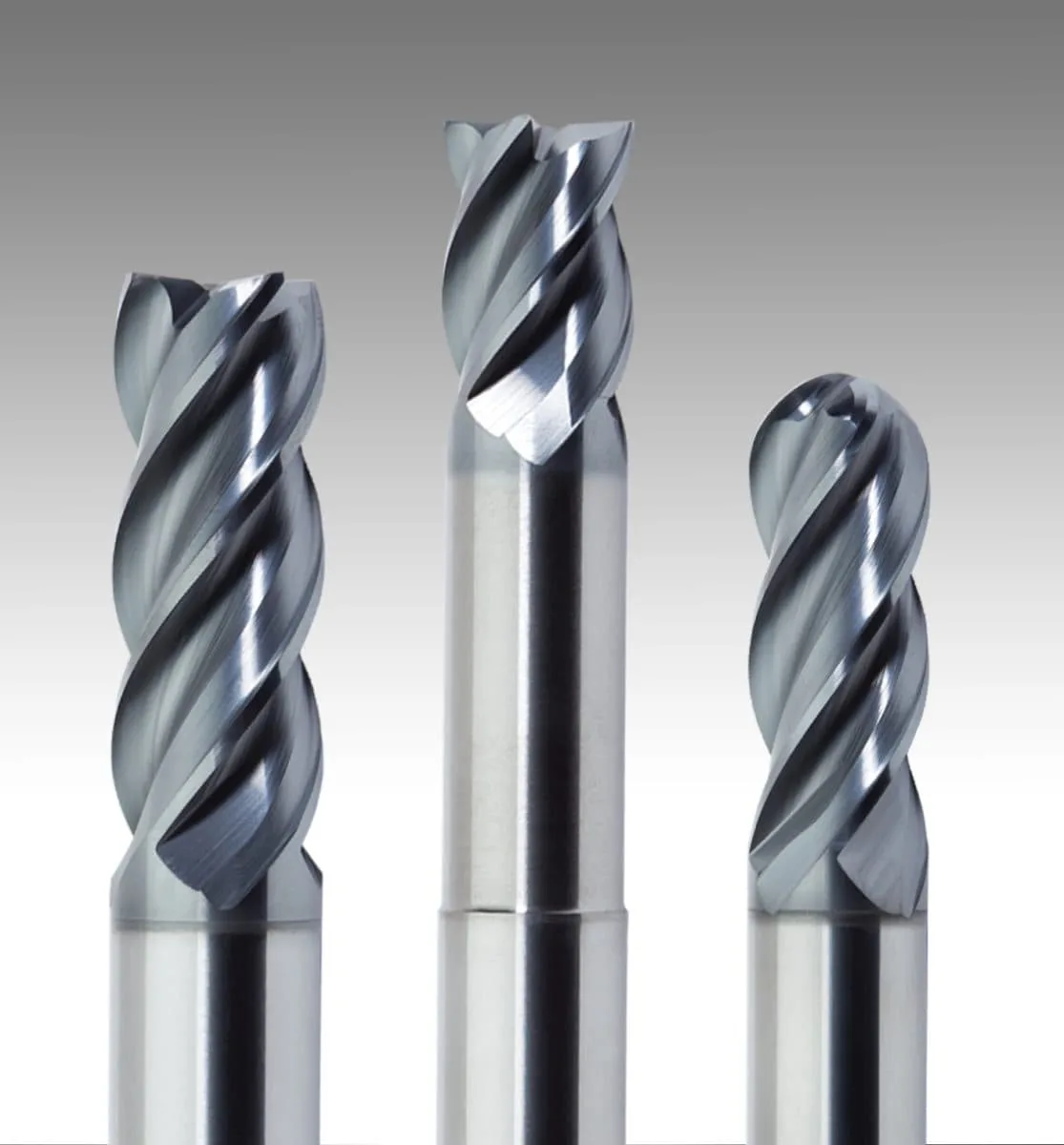

TuffCut® XT

TuffCut® XT Series of High Performance End Mills

TuffCut® XT Series of High Performance End Mills​

Specially designed for use with steel, stainless steel, special alloy steels, cast iron and hardened steel.

  • 4 Flute
  • ALtima® Blaze coating. B=ALtima® Blaze (ALCrN) coated
  • Center cutting
  • Stub, standard, long, and extra long flute lengths
  • 38° -41° Variable Helix angle
  • Square end and corner radius options

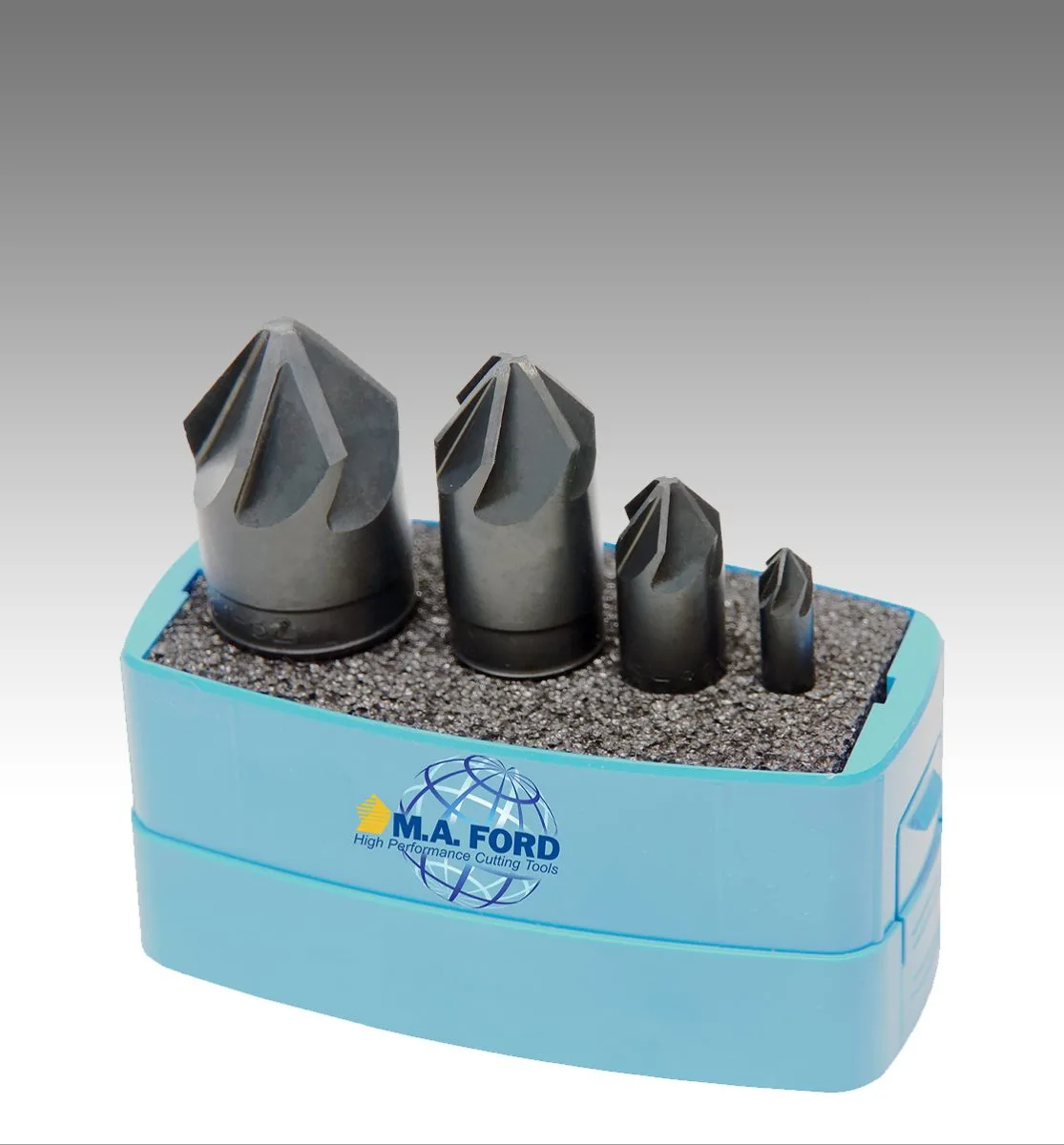

Countersinks
Countersinks Series

HSS Chatterless 6 Flute Countersink Set M.A.FordMax®

Standard 6-flute flange drill bit is designed for flange, chamfer or deburring in general and economical applications. Due to the multi-flute design, the chip load is reduced, even at the highest speed, it can be cut without vibration.

  • 6 Flutes
  • HSS
  • Uncoated or with TiN coating, T=TiN coated
  • Available with 60°, 82°, 90°, and 100°  included angles
  • Included Angle Code (8th character of tool number): 1=60°, 2=82°, 3=90°, 4=100°

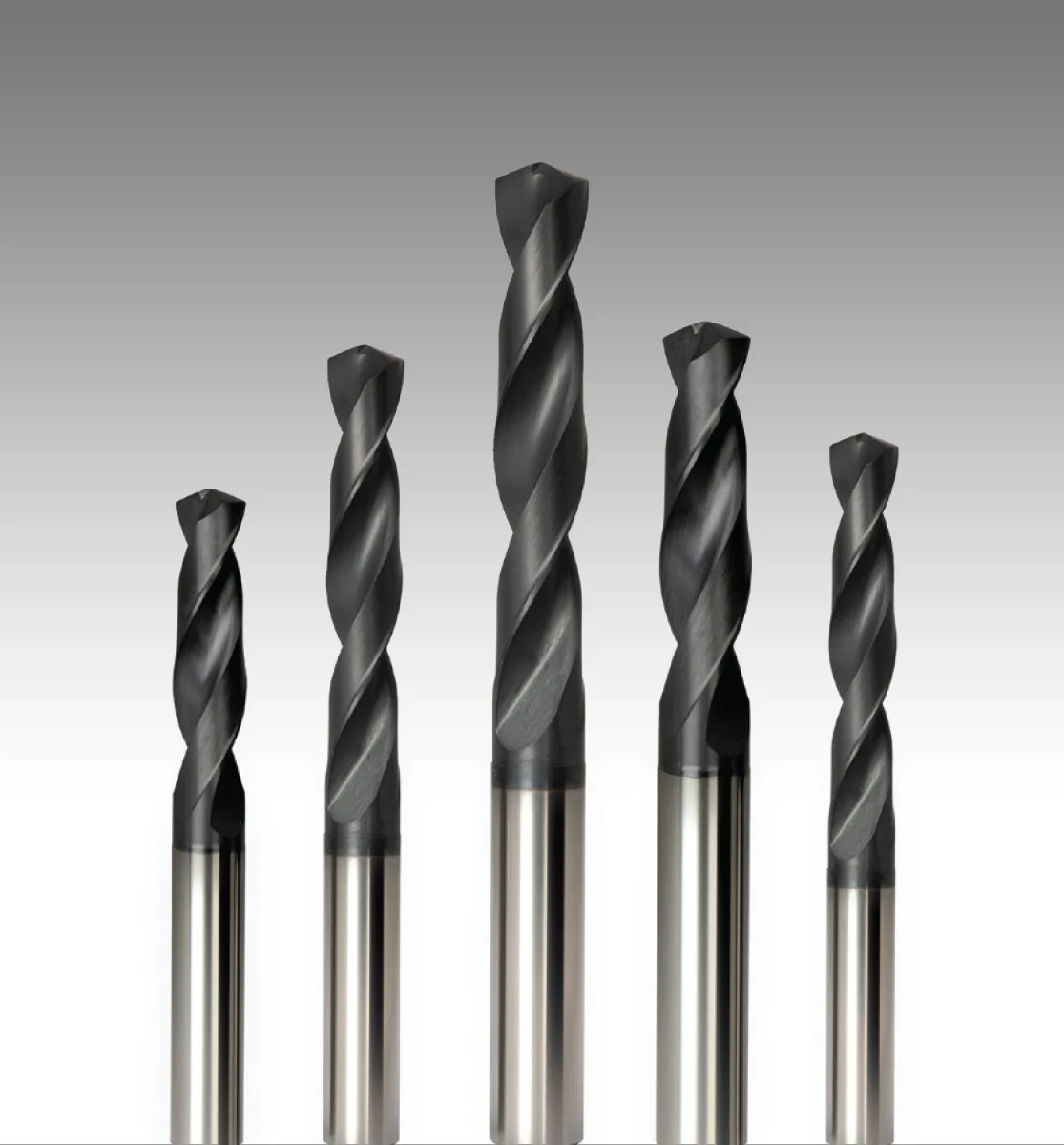

Twister®

HPD Performance Drills With & Without Internal Coolant Holes

Twister® HPD Performance Drills

Features

  • 6 Flutes
  • HSS
  • Uncoated or with TiN coating, T=TiN coated
  • Available with 60°, 82°, 90°, and 100°  included angles
  • Included Angle Code (8th character of tool number): 1=60°, 2=82°, 3=90°, 4=100°

Benefits

  • Eliminates the need for spot drilling
  • Precision holes
  • Shrink fit applications
  • Steels, Stainless Steels, Cast Irons, Titanium & Heat resistant alloys
  • Perfect for job shop and small batch production requiring a high-performance drill
